| Solution / Industrial |
|
 |
| |

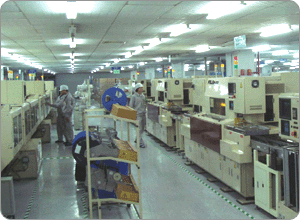

Telexper's complete IP Video solution provides site-wide surveillance for TFT-LCD plant in Taiwan. Located in the high-technology industrial park in Bade City, Taoyuan, this plant is devoted to the development of new display technologies and has fabricated various high-quality products.
|
| |
|
|
The industrial and utilities sector face numerous security challenges. These include extreme weather conditions, buildings that house sensitive research and development activities and others with numerous entrances and access rights.

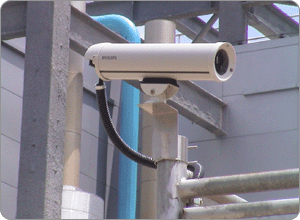

The IP-CCTV system designed and installed by Telexperˇ¦s local partner provides both PTZ dome and fixed cameras that covers the exterior of the plant as well as the general manufacturing areas inside. |
|
 |
| |
| CCTV monitoring workstations running ˇ§Control Center,ˇ¨ Telexperˇ¦s IP Video and alarm management software, are used throughout the plant to view live and recorded video from the cameras. The distributed nature of Telexperˇ¦s IP Video system is that any system component (camera, workstation, etc) can be located anywhere on the network. The system is thus very scalable, allowing additional cameras or workstations to be easily and cost-effectively added in the future, which is unlike the traditional analog CCTV systems. Free of charge software licenses enable workstations to be deployed for no more than a cost of an entry-level PC. The CPT has allowed installing CCTV workstations not only for the security team in the main control room but also for the Plant Manager, HR department and the maintenance team due to this flexibility. |
| |
|
|
| The video is recorded continuously at D1 resolution, 30fs for 30 days using a Telexperˇ¦s Network Video Recorder (NVR) server with 30TB of storage only all located in the control room that there is a commander station built in CMS . With the correct access permissions, any ˇ§Control Centerˇ¨ workstation in the plant can view and analyze recorded video from the NVR. |
|
 |
|
| |

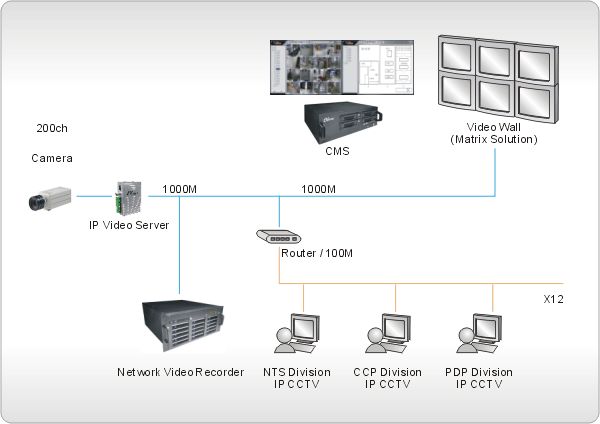

| System Diagram |
 |
| |
|
